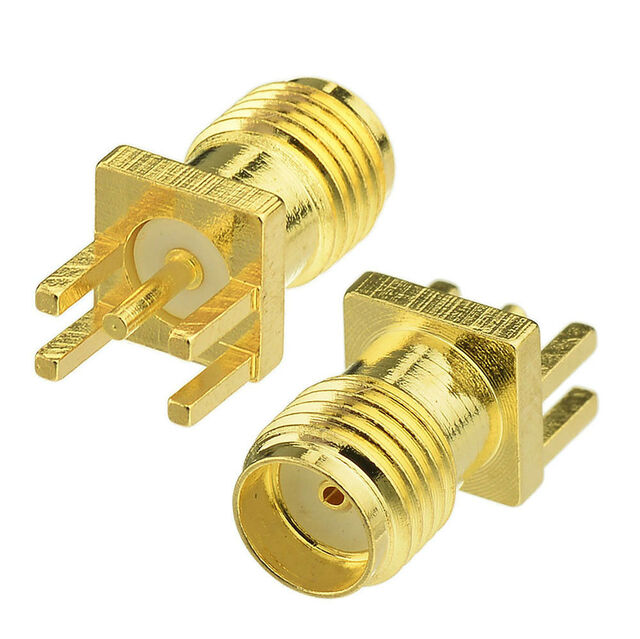

SMA Edge PCB Connector
High-quality connectors for better signal transmission
Enhance your communication devices and electronic projects with our premium gold-plated RF coaxial connectors. Delivering superior conductivity and durability, these connectors are perfect for ensuring optimal performance in your tech setup. Available in various sizes to meet your specific needs, these connectors also boast a sleek gold finish that adds a touch of elegance to your equipment. Whether you're a professional or an enthusiast, these RF connectors are an essential addition to your toolkit.
Electrical | Parameters | Notes |
Frequency | DC to 3GHz | |
Impedance | 50ohms | |
Orientation | Straight | |
VSWR | Straight 1.20 max .Right angle 1.25 max | |
Termination Style | Through Hole | |
Temp.range | -65～+165°C (PE Cable -40～+85°C) | |
Vibration | MIL-STD-202,Method 213 | |
Working Voltage | 335V max | |
Withstand Voltage | 1000V rms | |
Center Contact | ≤ 3 mΩ | |
Outer Contact | ≤ 2 mΩ | |
Insulation resistance | ≥ 5000 MΩ | |
Insertion loss | ≤0.15 dB | |
Durability(mating) | ≥500 cycles | |
Part Name | Material | Finish |
Body,Metal Parts | Brass | Gold,Nickel |
Center Contact (Plug) | Brass | Gold |
Center Contact (Jack) | Beryllium Copper | Gold |
Insulator | PTFE |
|
Crimp Ferrule | Annealed Copper | Glod or Nickel |
Clamp Gaskets | Silicone Rubber |
|
