SMA Connector

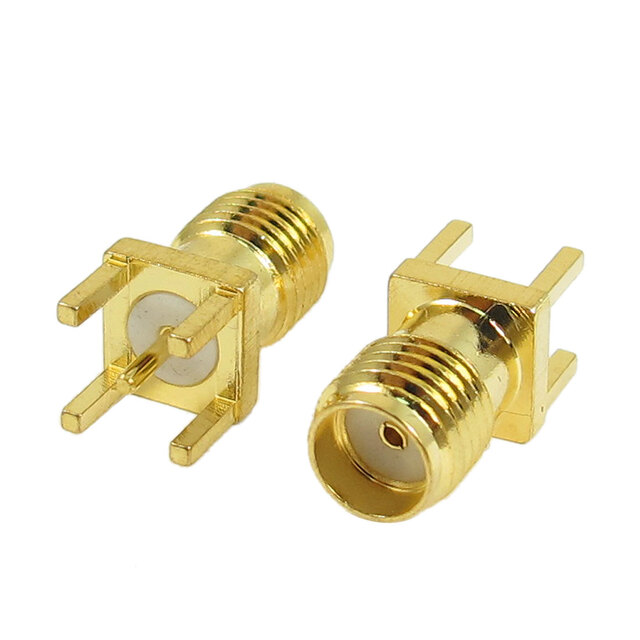

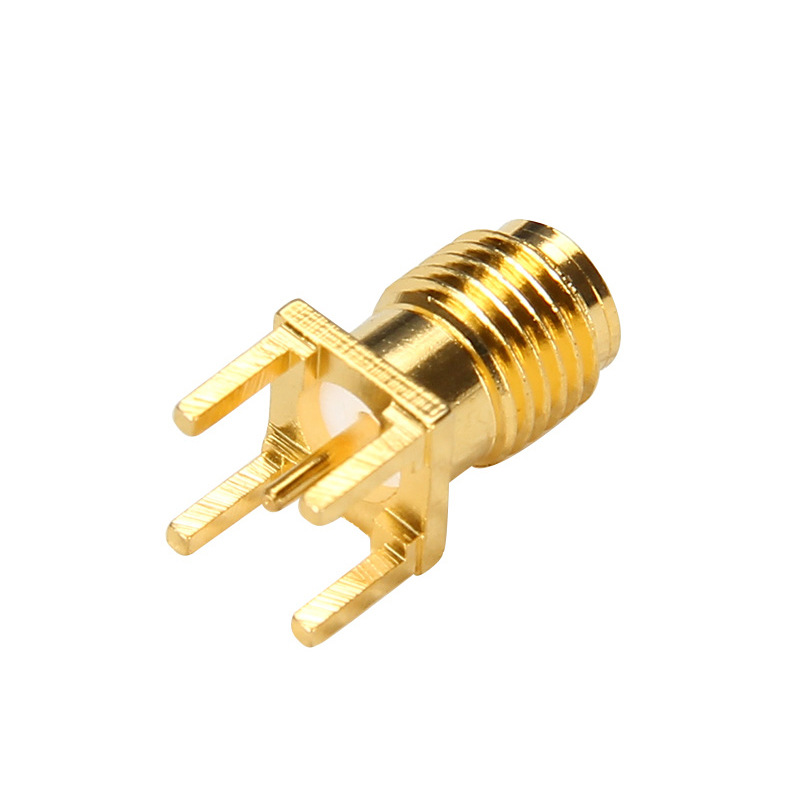

SMA Straight PCB Connector
Electrical | Parameters | Notes |
Frequency | DC to 3GHz | |
Impedance | 50ohms | |
Orientation | Straight | |
VSWR | Straight 1.20 max .Right angle 1.25 max | |
Termination Style | PCB | |
Temp.range | -65～+165°C (PE Cable -40～+85°C) | |
Vibration | MIL-STD-202,Method 213 | |
Working Voltage | 335V max | |
Withstand Voltage | 1000V rms | |
Center Contact | ≤ 3 mΩ | |
Outer Contact | ≤ 2 mΩ | |
Insulation resistance | ≥ 5000 MΩ | |
Insertion loss | ≤0.15 dB | |
Durability(mating) | ≥500 cycles | |
Part Name | Material | Finish |
Body,Metal Parts | Brass | Gold,Nickel |
Center Contact (Plug) | Brass | Gold |
Center Contact (Jack) | Beryllium Copper | Gold |
Insulator | PTFE |
|
Crimp Ferrule | Annealed Copper | Glod or Nickel |
Clamp Gaskets | Silicone Rubber |
|
