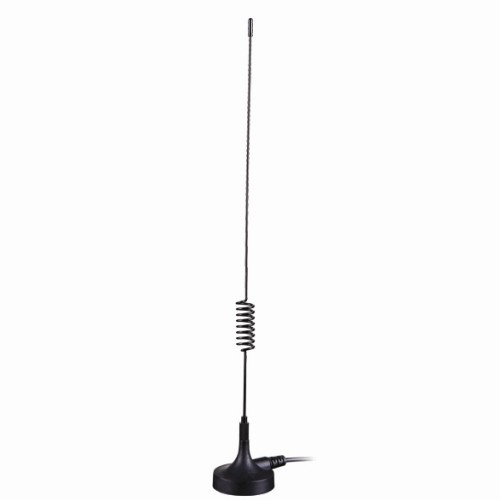

5dBi GSM Mobile Antenna
.png)
Electrical |
|
Frequency Range | 824-960/1710-1880MHz |
Gain | 5dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50Ώ |
Connector | SMA Male |
Cable Type | RG174 |
Cable Length | 3M |
Antenna Radome Material | Steel |
Mount way | Magnetic |
Mechanical |
|

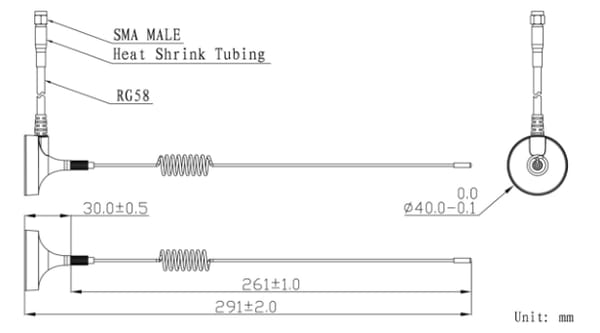

Dimensions | Φ29x290mm |
Weight | 52g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
