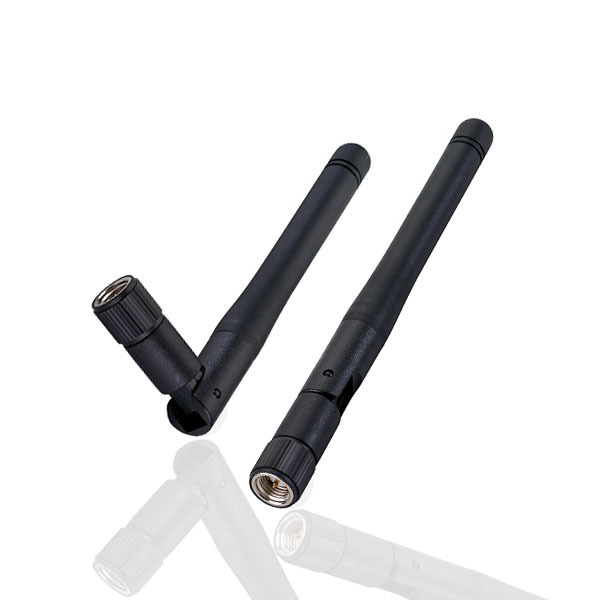

GSM Terminal Antenna Swivel type SMA antenna

Electrical

Frequency Range

GSM850:824-896MHz  GSM900:890-960MHz

DCS:1710-1880MHz    PCS:1850-1990MHz

Gain

2.15dBi

V.S.W.R

≤2.0

Radiation

Omni-Direction

Polarization

Vertical

Maximum Input Power

5W

Impedance

50Ώ

Connector

SMA Male

Antenna Radome Material

TPE

Mechanical

Dimensions

Φ8x108mm

Weight

7g

Operating Temperature

-40℃ to+70℃

RoHS Compliant

YE
