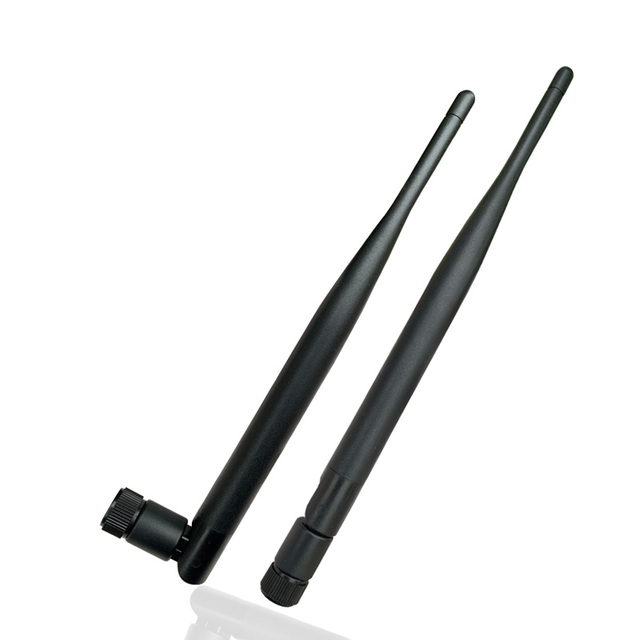

GSM Terminal Antenna Swivel type SMA antenna
Electrical |
|
Frequency Range | GSM850:824-896MHz GSM900:890-960MHz |
DCS:1710-1880MHz PCS:1850-1990MHz | |
Gain | 5dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 5W |
Impedance | 50Ώ |
Connector | SMA Male or RP SMA Male |
Antenna Radome Material | TPEE |
Mechanical |
|
Dimensions | Φ13x197mm |
Weight | 22g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
