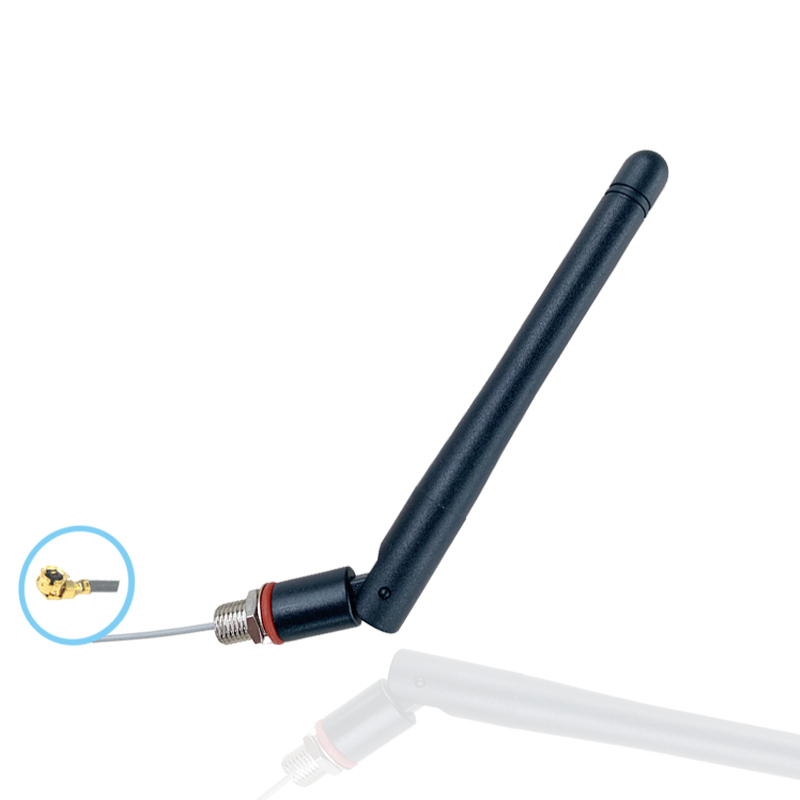

GSM 800/900/1800/1900MHz Terminal Antenna With IPEX U.FL Connector
Electrical |
|
Frequency Range | GSM850:824-896MHz GSM900:890-960MHz |
Gain | 2.5dBi |
V.S.W.R | ≤2.5 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 5W |
Impedance | 50Ώ |
Connector | IPEX |
Cable Type | 1.13 |
Cable Length | 10CM |
Antenna Radome Material | TPE |
Mount way | Screw |
Mechanical |
|
Dimensions | Φ8x110mm |
Weight | 10g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
