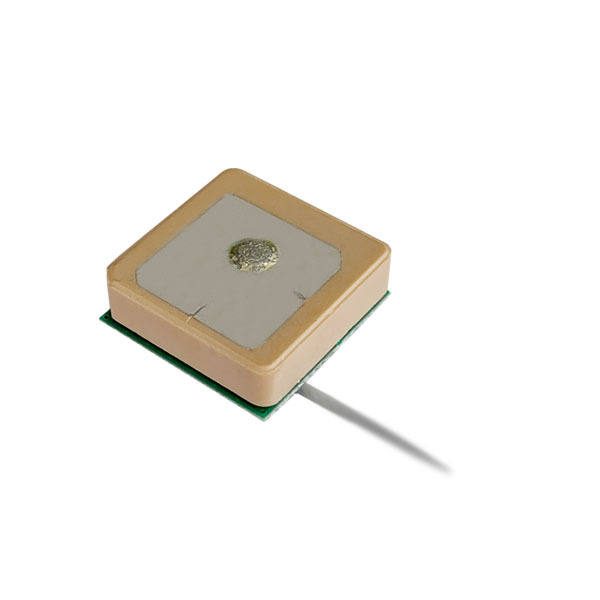

GPS Active Internal Ceramic Patch Antenna
Electrical |
|
|
Antenna | Frequency Range | 1575.42MHz±3MHz |
Gain | -3.0dB typ @13mmx13mm groundplane | |
Polarization Type | RHCP | |
V.S.W.R | ＜2.0 | |
Impedance | 50Ω | |
Dimensions | 12x12x7mm | |
LNA | Frequency Range | 1575.42MHz±3MHz |
LNA Gain | 15±3dB(without cable @25°C±10°C) | |
Noise Figure | 1.5MAX | |
DC Voltage | 3.0±0.5V | |
DC current | 5-15mA | |
V.S.W.R | ＜2.0 | |
Mechanical |
|
|
Mechanical | Cable | 1.13 |
Length | 100mm | |
Connector | U.FL | |
Environmental | Antenna Radome Material | Ceramics |
Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 75% | |
Weight | 8g | |
RoHS Compliant | YES |
