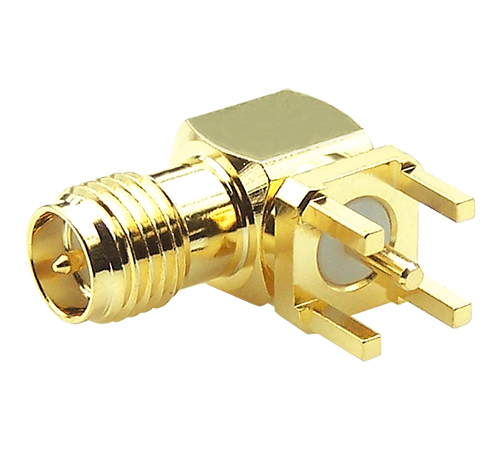

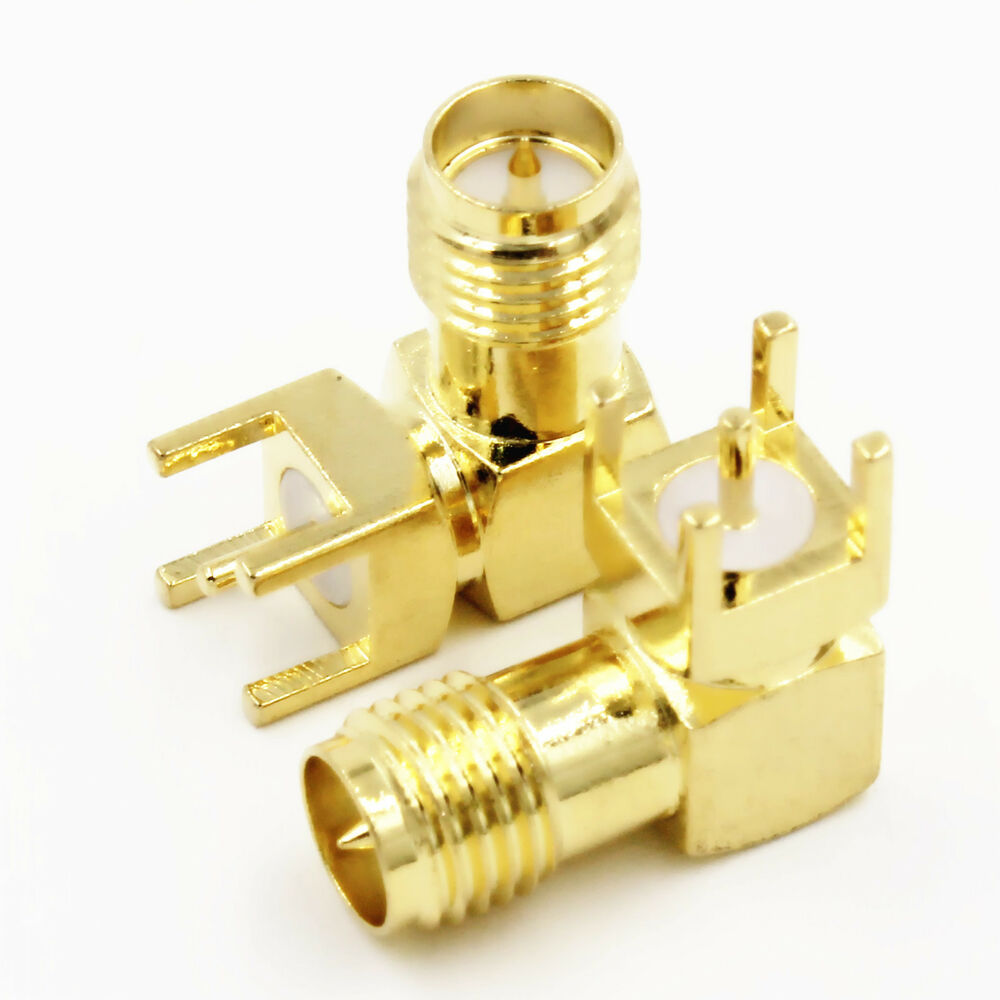

Gold-plated RPSMA Connectors
High-quality right-angle PCB mount
Introducing our premium Gold-Plated SMA Connectors, meticulously designed for right-angle PCB mounting. These connectors are engineered to deliver exceptional signal integrity and unmatched durability, making them perfect for all your RF applications. Crafted with precision, they ensure a reliable, long-lasting connection. Ideal for both professional and amateur projects, these connectors come in a stunning gold-plated finish that not only enhances conductivity but also adds a touch of elegance to your setup.
SMA Female Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing. It has an interface type of thru hole and a 50 Ohm impedance and uses shield/contact solder as an attachment method. Our female RP SMA right angle pcb connector provides a minimum frequency of DC and a maximum frequency of 6 GHz. This right angle RP SMA female pcb connector has a teflon dielectric type and a VSWR is less than 1.5. It also has a cooper body with gold plating and beryllium copper contact. This RP SMA female right angle pcb RF connector is RoHS compliant. |
Electrical | Parameters | Notes |
Frequency | DC to 3GHz | |
Impedance | 50ohms | |
Orientation | Right Angle | |
VSWR | Straight 1.20 max .Right angle 1.25 max | |
Termination Style | PCB | |
Temp.range | -65～+165°C (PE Cable -40～+85°C) | |
Vibration | MIL-STD-202,Method 213 | |
Working Voltage | 335V max | |
Withstand Voltage | 1000V rms | |
Center Contact | ≤ 3 mΩ | |
Outer Contact | ≤ 2 mΩ | |
Insulation resistance | ≥ 5000 MΩ | |
Insertion loss | ≤0.15 dB | |
Durability(mating) | ≥500 cycles | |
Part Name | Material | Finish |
Body,Metal Parts | Brass | Gold,Nickel |
Center Contact (Plug) | Brass | Gold |
Center Contact (Jack) | Beryllium Copper | Gold |
Insulator | PTFE |
|
Crimp Ferrule | Annealed Copper | Glod or Nickel |
Clamp Gaskets | Silicone Rubber |
|
