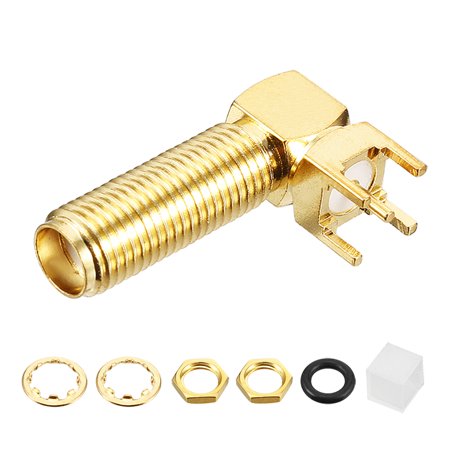

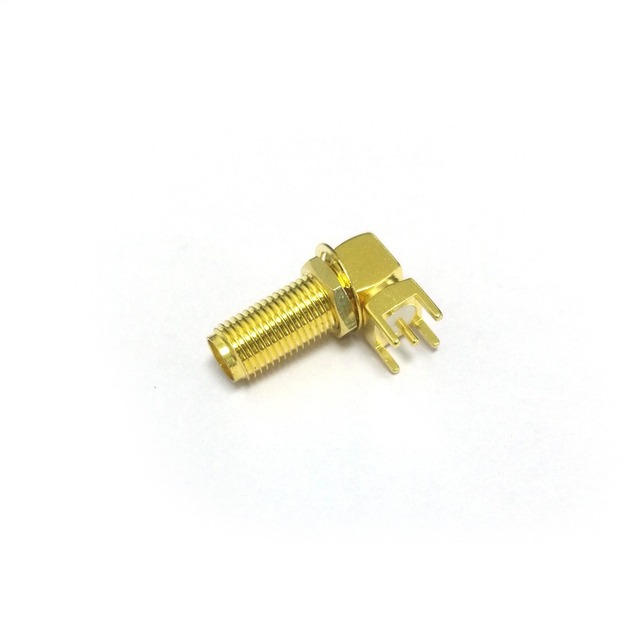

SMA Right Angle Female PCB Connector

Featuring a premium gold-plated connector, this top-of-the-line accessory ensures unparalleled signal transmission and exceptional durability for your electronic projects. Its robust construction and high-quality finish provide a reliable and secure connection you can count on. The package includes all necessary mounting and installation accessories, making the setup process seamless and hassle-free. Available in a sleek gold color, this connector not only performs superbly but also adds a touch of elegance to your setup. Ideal for both professionals and hobbyists seeking optimal performance and long-lasting reliability.

Electrical

  Parameters

 Notes

Frequency

DC to 3GHz

Impedance

50ohms

Orientation

Right angle

VSWR

Straight 1.20 max .Right angle 1.25 max

Termination Style

PCB

Temp.range

-65~+165°C (PE Cable -40~+85°C)

Vibration

MIL-STD-202,Method 213

Working Voltage

335V max

Withstand Voltage

1000V rms

Center Contact

≤ 3 mΩ

Outer Contact

≤ 2 mΩ

Insulation resistance

≥ 5000 MΩ

Insertion loss

≤0.15 dB

Durability(mating)

≥500 cycles

Part Name

Material

Finish

Body,Metal Parts

Brass

Gold,Nickel

Center Contact (Plug)

Brass

Gold

Center Contact (Jack)

Beryllium Copper

Gold

Insulator

PTFE



Crimp Ferrule

Annealed Copper

Glod or Nickel

Clamp Gaskets

Silicone Rubber
