SMA Connector

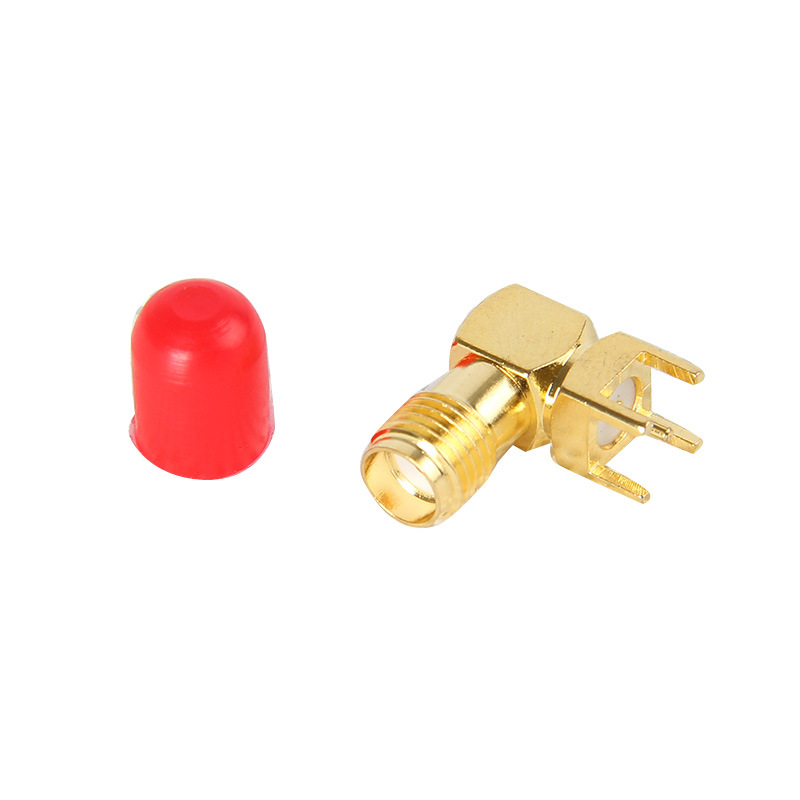

   SMA Female Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch hole spacing. It has an interface type of thru hole and a 50 Ohm impedance and uses shield/contact solder as an attachment method. Our female RP SMA right angle pcb connector provides a minimum frequency of DC and a maximum frequency of  6 GHz.

  This right angle RP SMA female pcb connector has a teflon dielectric type and a VSWR is less than 1.5. It also has a cooper body with gold plating and beryllium copper contact. This RP SMA female right angle pcb RF connector is RoHS compliant.

Electrical

 Parameters

 Notes

Frequency

DC to 3GHz

Impedance

50ohms

Orientation

Right Angle

VSWR

Straight 1.20 max .Right angle 1.25 max

Termination Style

PCB

Temp.range

-65～+165°C (PE Cable -40～+85°C)

Vibration

MIL-STD-202,Method 213

Working Voltage

335V max

Withstand Voltage

1000V rms

Center Contact

≤ 3 mΩ

Outer Contact

≤ 2 mΩ

Insulation resistance

≥ 5000 MΩ

Insertion loss

≤0.15 dB

Durability(mating)

≥500 cycles

Part Name

Material

Finish

Body,Metal Parts

Brass

Gold,Nickel

Center Contact (Plug)

Brass

Gold

Center Contact (Jack)

Beryllium Copper

Gold

Insulator

PTFE

Crimp Ferrule

Annealed Copper

Glod or Nickel

Clamp Gaskets

Silicone Rubber
