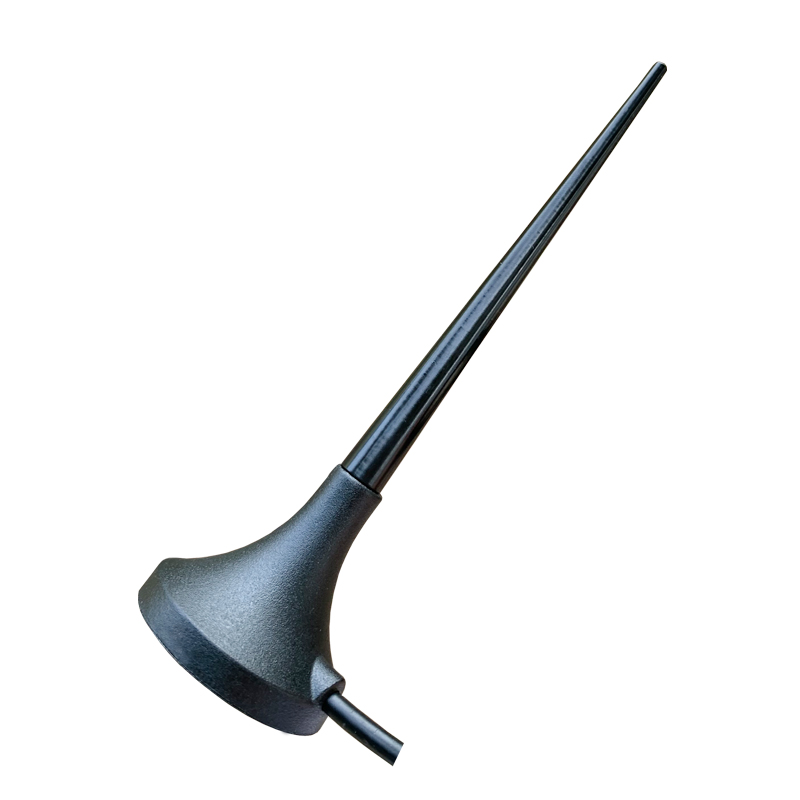

3dBi GSM Magnetic Cellular Band Antenna
This antenna supports the 824-960MHz and 1710-1880MHz frequency bands, significantly improving efficiency and gain across all common cellular bands. Its compact design makes it suitable for both indoor and outdoor use. When attached to any metal plate (ground-plane), it delivers best-in-class performance.
Electrical |
|
Frequency Range | 824-960/1710-1880MHz |
Gain | 3dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50Ώ |
Connector | SMA Male |
Cable Type | RG174 |
Cable Length | 3M |
Antenna Radome Material | Aluminum |
Mount way | Magnetic |
Mechanical |
|
Dimensions | Φ29x100mm |
Weight | 48g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
